General Description
This 10-ton capacity winch is designed for pulling, lifting, or shifting heavy loads within palm oil mill processing areas, such as:
- Pulling sterilizer cages (sterilizer lorries),
- Pulling weighbridge platforms for lorries,
- Or use in hoisting and maintenance systems.

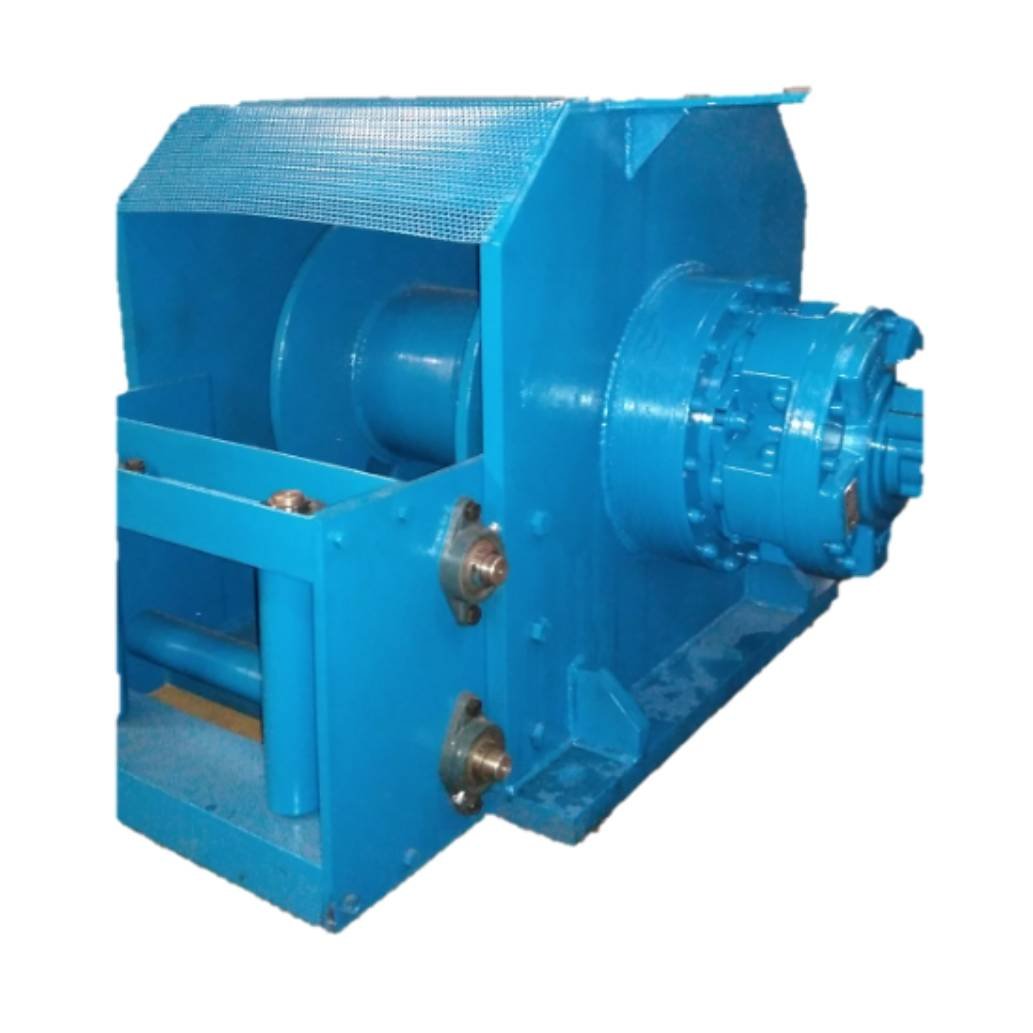

The winch features a heavy-duty structural design, equipped with a high-torque reduction gearbox and a precision-engineered steel drum to ensure consistent pulling power and long service life in the harsh palm oil mill environment (hot, humid, and dusty conditions).
Technical Specifications
| Parameter | Description |
|---|---|
| Machine Type | Winch (Hydraulic / Electric, depending on application) |
| Pulling Capacity | 10 tons (100 kN) |
| Line Speed | 6–10 meters/minute (depending on gearbox ratio and motor) |
| Drum Type | Solid steel drum with wire rope grooves |
| Wire Rope Diameter | ±18–22 mm (selected based on capacity requirements) |
| Maximum Rope Length | 30–50 meters |
| Drive System | Hydraulic motor with high-torque planetary gearbox |
| Gearbox Ratio | 1 : 45 (typical heavy-duty reduction ratio) |
| Power Source | Hydraulic power pack or electric motor, 15–25 HP |
| Braking System | Automatic fail-safe brake with manual release |
| Main Construction Material | Welded steel frame |
| Finish | Industrial epoxy paint, corrosion-resistant blue color |
| Mounting Type | Fixed base or skid-mounted |
| Operating Environment | Wet and hot conditions (palm oil mill plant) |
Applications in Palm Oil Mills
- Sterilizer Station: Pulling palm fruit bunch lorries into and out of sterilizers.
- Workshop & Maintenance Area: Moving heavy components (e.g., pumps, gearboxes, etc.).
- Loading Ramp / Thresher Area: Assisting in the movement of lorries or bulk materials.
